Quik-Park™ loader mounting system
Quick-change attachment carrier
End-of-pin lubrication means easy maintenance
- Monday 8:00AM - 5:00PM
- Tuesday 8:00AM - 5:00PM
- Wednesday 8:00AM - 5:00PM
- Thursday 8:00AM - 5:00PM
- Friday 8:00AM - 5:00PM
- Saturday Closed
- Sunday Closed
ID # 41370515

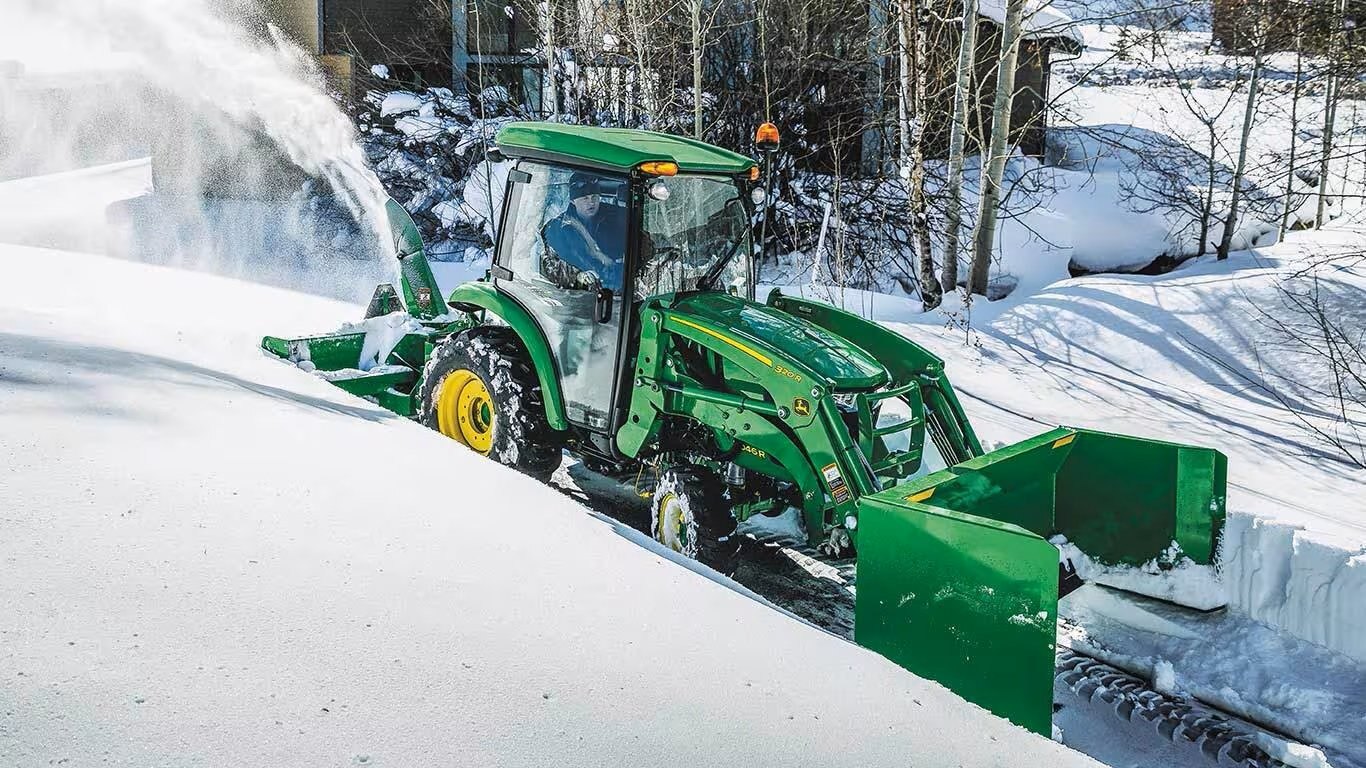

2025 John Deere 320R
Call for Price
Overview
Specifications
features
key specs
tractor
loader
|
Model
320R
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
John Deere
Features
|
Quik-Park™ equipped loaders are designed for easy removal and mounting to and from the tractor without tools. The parking stand, attached to the front frame of the tractor, is an integral part of the loader during loader operation. The parking stand lowers into position by moving the joystick to the raised position once the latches are opened. This allows the loader to move to the parked position. |
|
Allows fast, easy removal and mounting of attachments without tools. |
|
All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. There is no more searching for grease points that are hard to find. Removing the grease gun from the grease fitting or zerk is not a problem either as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting or zerk. |
Key Specs
| Maximum lift height | 2284 mm 90 in. |
|---|---|
| Lift capacity at full height | Measured at pivot 617 kg 1360 lb Measured at 500 mm ahead of pivot 453 kg 999 lb |
| Boom breakout force | Measured at pivot 1295 kg 2855 lb Measured at 500 mm ahead of pivot 922 kg 2032 lb |
| Bucket rollback force capacity | At ground-level line 1188 kg 2619 lb |
| Clearance at full height - bucket dumped | 1743 mm 69 in. |
| Dump angle, degrees | 43 degree (angle) |
| Rollback angle, degrees | 25 degree (angle) |
Tractor
| Model | 4105 |
|---|---|
| Front tire | 10-16.5 6PR R4T1 |
| Rear tire | 17.52-24 8PR R4T1 |
| Wheelbase | 1727 mm 68 in. |
| Pump capacity | 5.7 gpm |
| Rated pressure | 2500 psi |
Loader
| Base weight | 281.09 kg |
|---|---|
| Bucket used | Materials |
| Bucket weight | 93.8 kg 207 lb |
| Lift capacity at full height | Measured at pivot (U) 633 kgf 1393 lbf Measured at 500 mm ahead of pivot (V) 457 kgf 1005 lbf |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf |
| Boom breakout force | Measured at pivot (Y) 1710 kgf 3769 lbf Measured at 500 mm ahead of pivot (Z) 1209 kgf 2665 lbf |
| Bucket rollback force capacity | At maximum height (VV) 822 kgf 1819 lbf At 59-in. (1500-mm) lift height (XX) 1397 kgf 3079 lbf At ground-level line (ZZ) 1335.4 kgf 2944 lbf |
| Dimensions | Maximum lift height (A) 2616 mm 103.3 in. At full height - bucket level(B) 2411 mm 94.9 in. At full height - bucket dumped (C) 2003 mm 78.8 in. |
| Overall length (I+F), ft (m) | 3.218 m 10.55 ft |
| Digging depth (H) | 121 mm 4.76 in. |
| Reach | At maximum height (D) 766 mm 30.1 in. At ground level - bucket level (F) 1491 mm 50.7 in. |
| Bucket angle | Dump angle, degrees (E) 49.3 degree (angle) Rollback angle, degrees (G) 23.8 degree (angle) Dump angle, ground 138 degree (angle) |
| Cycle times | Loader raise, seconds 3.6 seconds Loader lower, seconds 2.1 seconds Bucket dump, seconds 3.0 / 1.2 (with regen) seconds Bucket rollback, seconds 1.8 seconds |
