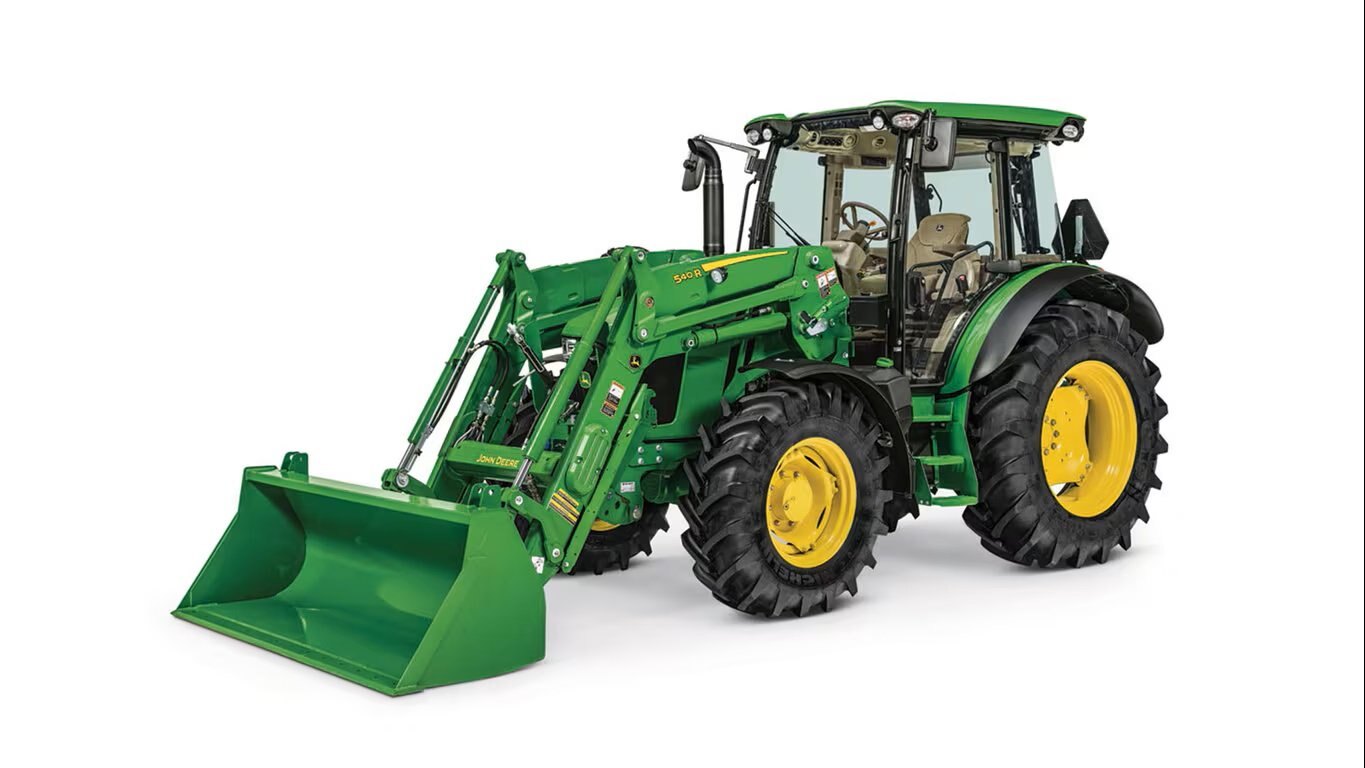

2025 John Deere 540R

Single-point hydraulic connection saves time

The 540R Loaders comes base equipped with single-point hydraulic connector. This feature saves time and effort when installing and removing the loader.

To disconnect the hydraulic connection between the loader and the tractor, it is necessary to relieve the hydraulic system oil pressure on the tractor.

Boom lockout for easy service

A hydraulic shut-off valve is included with the M- and H-Series Ag Loaders to ensure the loader does not lower suddenly. For example, this allows the boom to be locked out when someone is required to be located under the loader boom for service work on the tractor. It should not be used for extended periods of time unless an appropriate support stand is also utilized.

Loader removal (parking made easy)

Only leave the operator's station once to disconnect the loader
John Deere loaders are easily removed and reinstalled on tractors without tools. The automatic mast latch (AML) parking system allows removing or attaching the loader to the tractor in minutes without the need for tools.

1. Lower the loader to ground, turn tractor off and release hydraulic pressure from joystick
2. Exit operator's station
3. Open / lower parking stands (both left and right)
4. Turn the boom cylinder valve lever to the unlocked position
5. Remove loader hydraulics
6. Unlock the mast pins (both left and right) and then able to back away

Removing or parking the loader

To disconnect the loader, the bucket has to be flat on a stable ground (1). The operator must place the bucket flat on the ground, turn off tractor and release hydraulic pressure from joystick. (2) Exit the operator station and (3) lower the self-adjustable parking stands on both sides of the loader. The self-adjustable parking stands allow the driver to park the loader on irregular terrain and still keep a good position relative to the mounting frame, to attach the loader correctly later on. The parking stands can be set without tools. (4) After lowering the parking stands, the hydraulic couplers on the right-hand side of the loader must be removed and (5) the loader must be unlocked from the tractor mounting frames (both right and left side).

Concealed oil lines improve appearance and reduce damage

Over time, increased width in tractor hoods have caused issues with available space for running traditional oil lines of a loader along the boom, making them more susceptible to damage.

To improve this situation, the oil lines have been routed through the boom arm and the torque tube, improving line protection and the appearance of the loader.
