2025 John Deere 2680H High Performance Disk

Wide range of working widths available to match acreage and power requirements

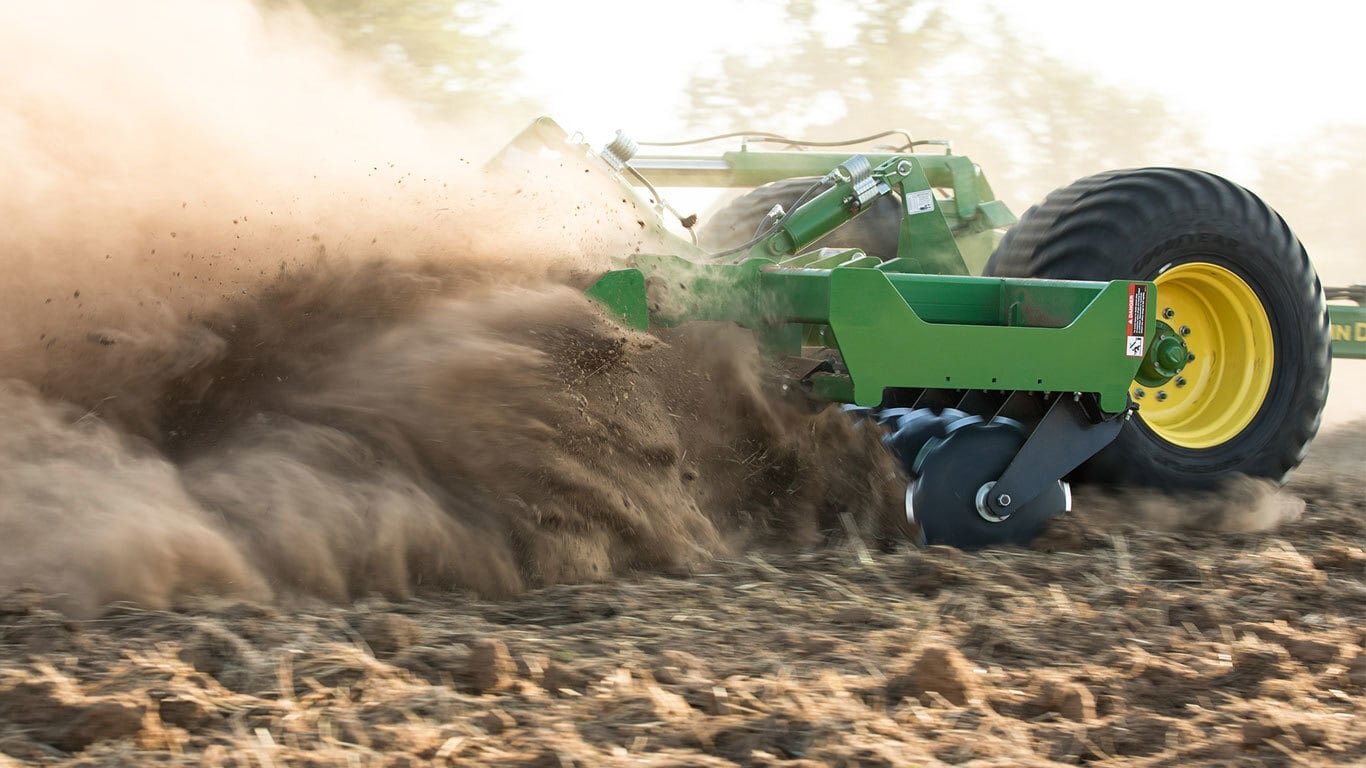

The 2680H High-Performance Disk gives operators the ability to cover acres quickly, increasing their productivity. This two-season tool can operate up to 22.5 km/h (14 mph) in field.

This tool is available in ten configurations from 2.5 m to 7.4 m (8 ft, 4 in. to 24 ft, 4 in.). The 2680H requires 34.25 kW/m (14 hp/ft), but in certain hilly, soft, or wet conditions it may require an additional 25 percent engine horsepower to maintain operating speeds at preferred working depth.

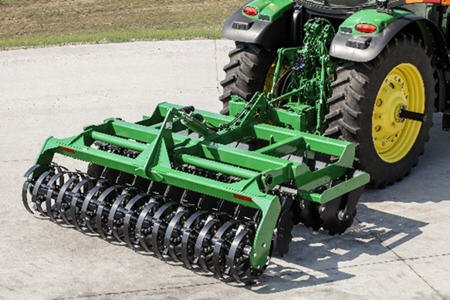

Integral three-point rigid models

One-section drawn models

Two-section drawn models

Individually mounted blades

The 2680H High-Performance Disk features individually mounted blades. These blades, supported by rubber torsion elements, can travel up to 22.9 cm (9 in.) while passing over an obstruction, like a rock. This allows the rest of the tool to remain engaged and continue working, allowing for better ground contour.

Keep the tool engaged while passing over obstructions

Blades are also easy to replace. Rather than having to remove an entire gang, just replace an individual blade.

Rear attachment options to match the operation

Producers can choose from three rear attachment options to match their operation. Options include a cage roller, spring roller, and rubber roller.

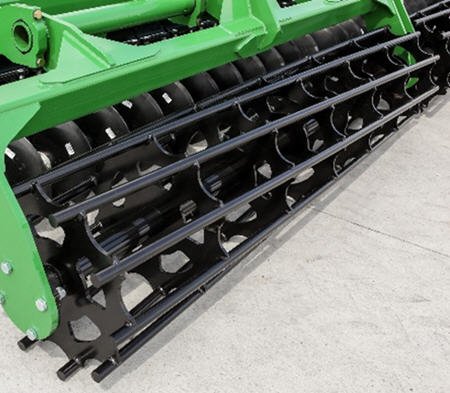

The cage roller is the most versatile option. Choose this rear attachment if the primary application is fall tillage. It works in all soil types and conditions and has a diameter of 64.8 cm (25.5 in.).

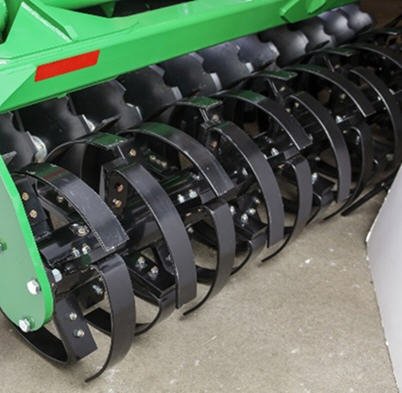

The spring roller is the most specialized. It works in light/medium soils and can provide a level seedbed with additional firming. Individually mounted tines work to prevent plugging of the roller. Avoid using it in rocky ground. It has a diameter of 62.2 cm (24.5 in.).

The rubber roller is best for firming and preparing a seedbed in the spring. It works best in lighter drier soils where a firm finish and anchored residue is a primary concern. This rear attachment works in most soil types and features a hydraulically adjustable scraper. It has a diameter of 63.5 cm (25 in.).

Model year 2026 new tool offerings

Starting in model year 2026, three-section 2680H’s will no longer be available to order.To replace this lineup, we will now offer the new HSD Series which is available in widths ranging from 25 to 45 ft. Integral three-point, drawn one-section, and drawn two-section 2680H models will still be available to order.

MY25 2680H widths vs MY26 HSD Series widths
