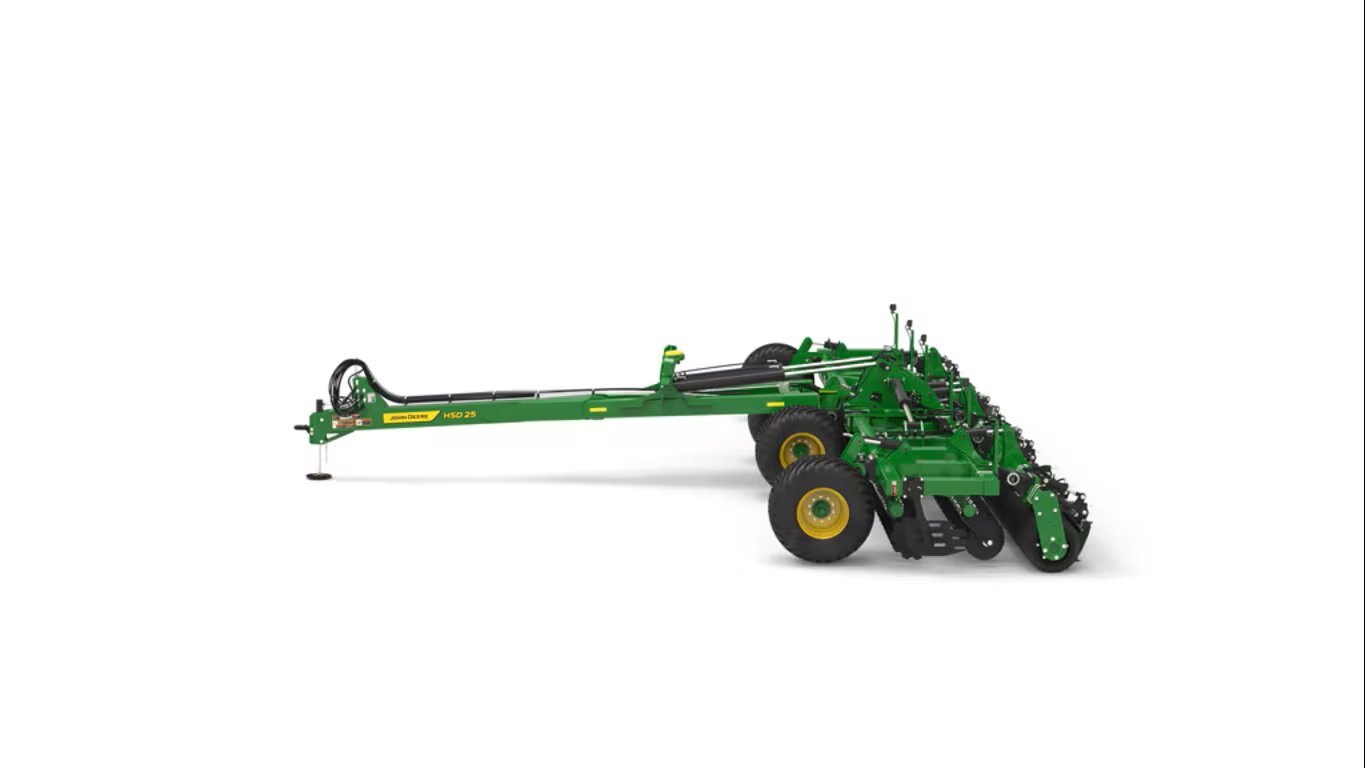

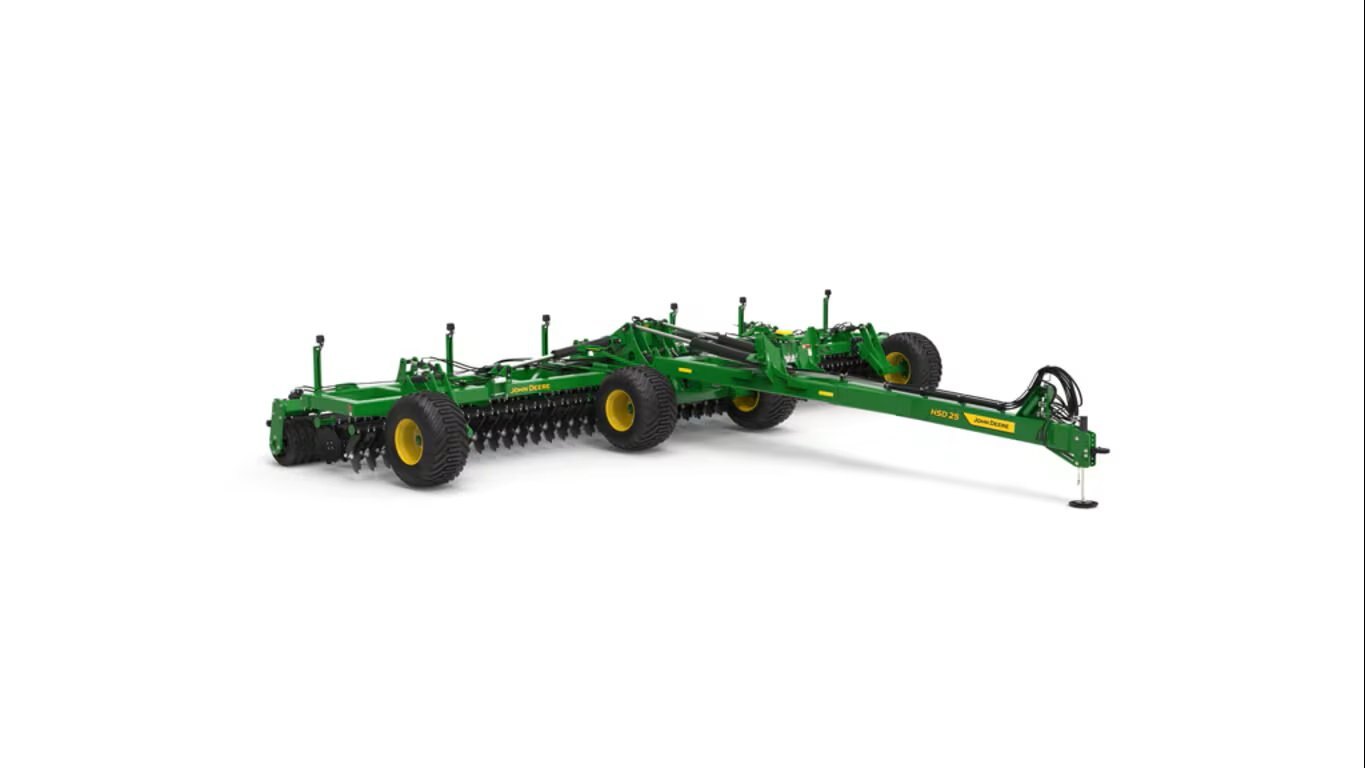

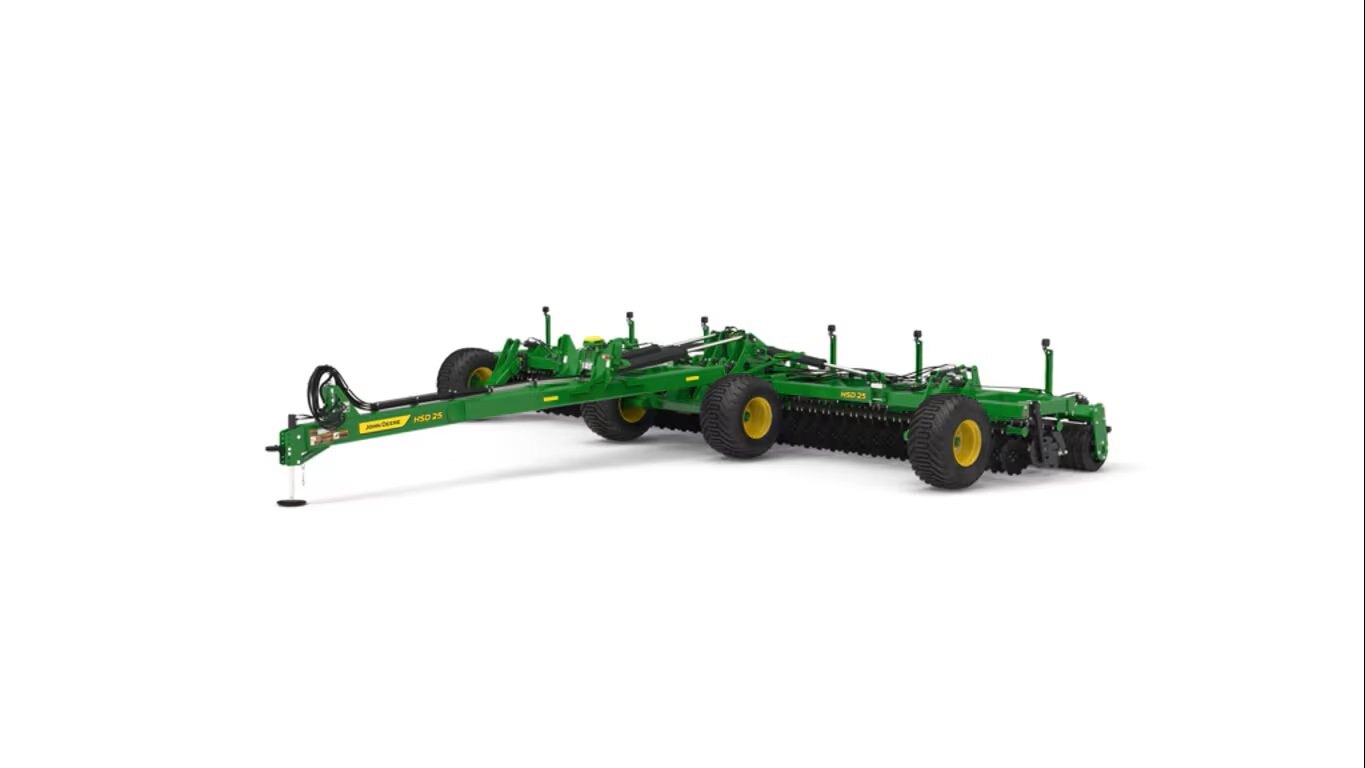

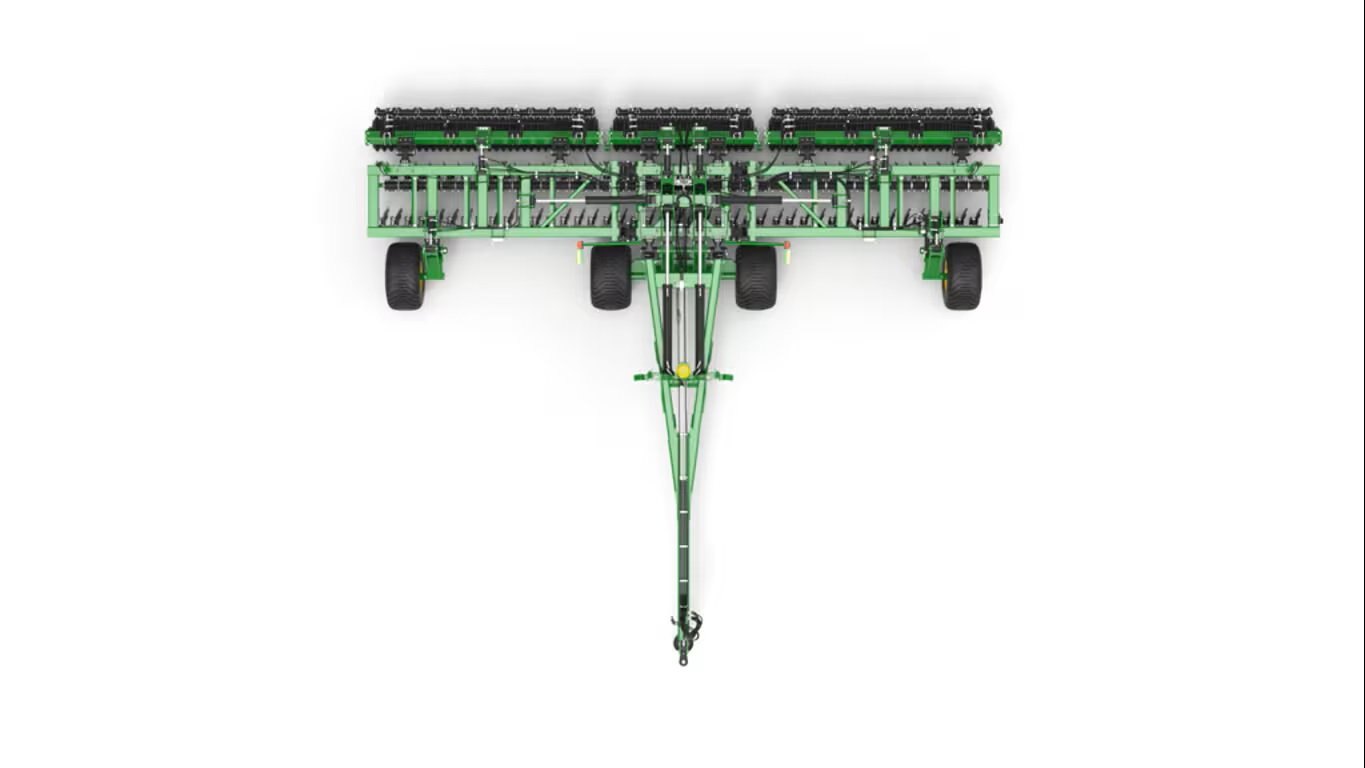

2025 John Deere HSD25 High Performance Disk

Wide range of working widths available to match acreage and power requirements

The HSD Series gives operators the ability to cover acres quickly, increasing their productivity. This two-season tool can operate up to 22.5 km/h (14 mph) in field.

This tool is available in seven configurations from 7.70 m to 13.79 m (25 ft to 45 ft). The HSD Series requires 34.25 kW/m (15 hp/ft), but in certain hilly, soft, or wet conditions it may require an additional 25 percent engine horsepower to maintain operating speeds at preferred working depth.

HSD Series models

*NOTE: Minimum overlap of 15.2 cm (6 in.).

Individually mounted blades

The 2680H High-Performance Disk features individually mounted blades. These blades, supported by rubber torsion elements, can travel up to 22.9 cm (9 in.) while passing over an obstruction, like a rock. This allows the rest of the tool to remain engaged and continue working, allowing for better ground contour.

Keep the tool engaged while passing over obstructions

Blades are also easy to replace. Rather than having to remove an entire gang, just replace an individual blade.

Improved reliability

Overview
The HSD Series features a new cast pivot design, as well as an increased frame tube size. This results in the field finish and residue management you’re used to, now backed by a three-year frame warranty.

Benefits

• Three-year warranty on frame components
• Larger, individually serviceable cast pivot joints at hitch, wing, and rear attachment frames increase uptime
  • Bushing can be serviced by removing 12 bolts and replacing pivot bushing
• Larger frame tubes increase life of frame and weight per blade

2680H bushing versus HSD Series cast hinge design

1. 2680H bushing
2. HSD Series cast pivot hinge
3. Composite bushings
4. Integrated seals
5. Pivot pin

The new HSD Series cast hinge provides increased surface area for improved load distribution and increased resistance to contamination from integrated seals around the pivot pin. This new large cast hinge design utilizes the latest in sealing technology and composite bushing materials for improved life expectancy and reduced maintenance.

Autonomy ready tillage

Technology should be simple to maximize full potential, autonomy shouldn’t be different. With autonomous farming solutions on the horizon, many customers are wondering what they should do to ensure the tillage equipment they are purchasing today will be READY to operate autonomously.

Autonomy Ready includes known and available integrated components, allowing customers to save time and money when adding the fully autonomous tillage solution hardware. The components included from the factory are:

• Implement lights
• Receiver mast
• Implement receiver harness

Please reference the chart below for model availability.

Additional Autonomy Key Enablers (included in base):

• TruSet™ Active*

*HSD Series does not include the Active feature, but is Autonomy ready

Expanded narrow transport offerings

Overview
The HSD Series offers expanded narrow transport offerings for maneuvering down narrow roads and bridges. This tool is available in seven configurations, four of which have a narrow transport width of 13 ft, 0 in.

Benefits

• Transporting down narrow roads and bridges
• Maneuvering in width-restricted spaces

Additional details

Model year 2026 new tool offerings

Starting in model year 2026, three-section 2680H’s will no longer be available to order.To replace this lineup, we will now offer the new HSD Series which is available in widths ranging from 25 to 45 ft. Integral three-point, drawn one-section, and drawn two-section 2680H models will still be available to order.

MY25 2680H widths vs MY26 HSD Series widths
