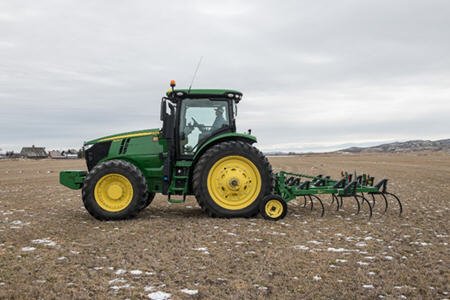

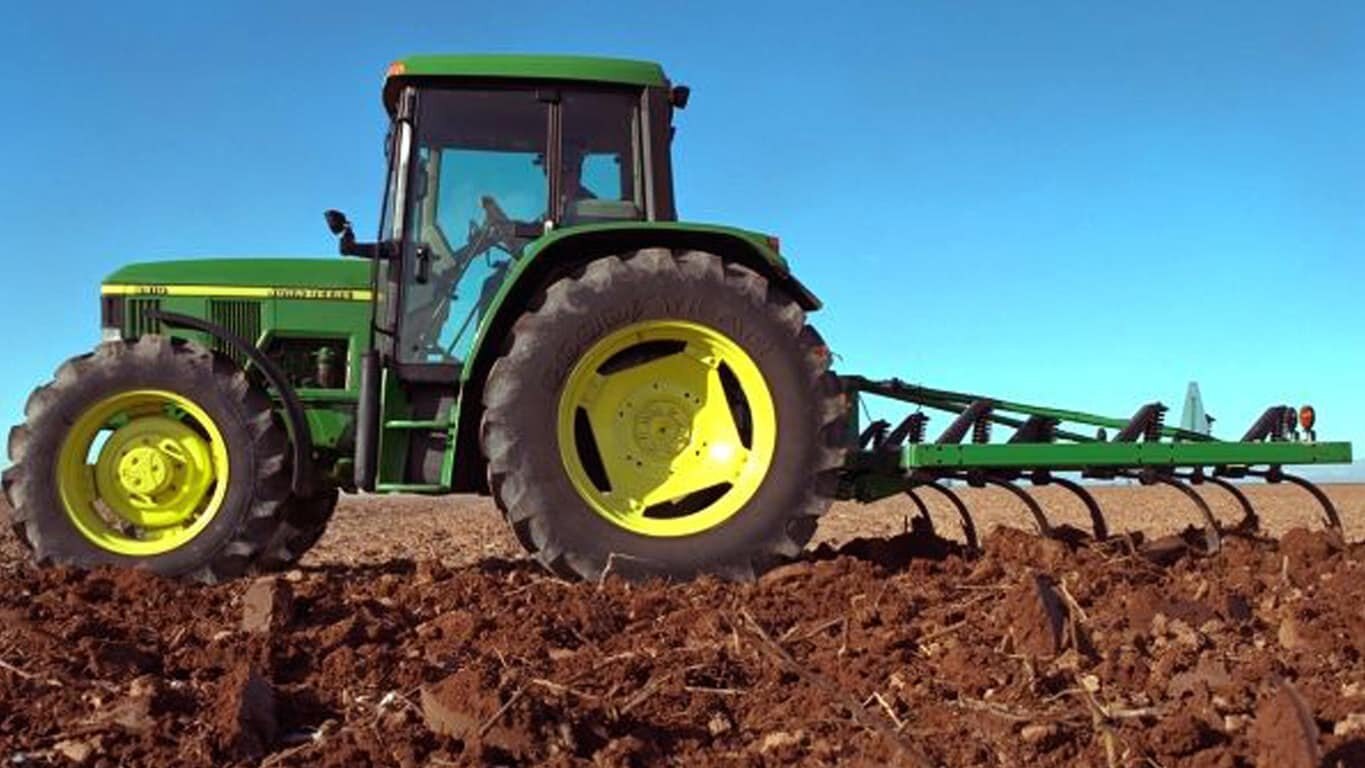

2025 John Deere 610 Integral Chisel Plow

Offers a variety of sizes and excellent residue flow

The 610 Chisel Plow is available in a variety of sizes to help match tractor horsepower and work designs. maintain operating speeds at preferred working depth.

Typical percents of the residue cover that remains from the 610 are listed as follows (the percentages do not take into account variables such as the condition of the residue, speed, and soil type):

Strong mainframe withstands demanding field conditions

The 610 Chisel Plow features a large 102-mm x 102-mm (4-in. x 4-in.) tubular steel mainframe.

Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.

Choice of rigid, TruPosition™, and Tru-Depth™ standards

The rigid standard:

• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Design is suited for fields having few obstructions
• Will till to 203 mm (8 in.) deep
• Good clearance to handle heavy trash
  • 711-mm (28-in.) underframe
  • 305-mm (12-in.) spacing

The TruPosition standard:

• Cast pivot assembly holds shank firm while working in the soil
• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Shank is replaceable without disassembly of the standard assembly
• Trip action is suited for fields having rocks or other obstructions
  • 550-lb trip 711-mm (28-in.) standard will till to 203 mm (8 in.) deep
  • 711-mm (28-in.) underframe
  • Trip height of 254 mm (10 in.) for good clearance
• Slotted lower hole to aid in removing ground-engaging tools

The Tru-Depth standard:

• Cast pivot assembly holds the shank firm while working in the soil
• 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.); edge bent for extra strength
• Designed to work in rocky ground and heavy draft conditions
  • Will till to 305 mm (12 in.) deep
  • Trip height of 279 mm (11 in.)
  • 568-kg (1250-lb) trip force
• Excellent clearance to handle heavy trash
  • 813-mm (32-in.) underframe
  • 305-mm (12-in.) spacing

Implement warning lights enable safe transport

An implement warning light harness with a turn-signal module for two amber and two red lights are included as standard equipment for safe transport on roads.

The implement warning light harness requires one of the following:

• Category 2, 3-point hitch with or without Quik-Coupler

• Category 3 and 3N, 3-point hitch with or without Quik-Coupler

Horsepower requirements

The rigid and TruPosition™ standards require engine horsepower of 6 hp per ft to 10 hp per ft.


The Tru-Depth™ standard requires engine horsepower of 6 hp per ft to 14 hp per ft.
