2025 John Deere 2430 Chisel Plow

TruSet™ features, packages, and documentation

Overview
With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.

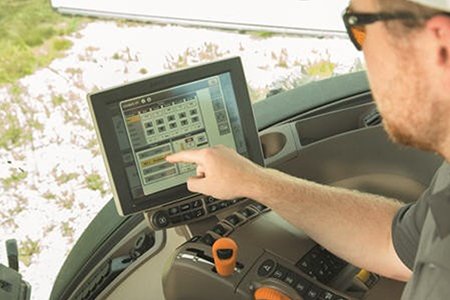

Using a GreenStar™ display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

John Deere has expanded TruSet features to bring even more functionality into the cab:

• Active depth, and basket pressure and raise
• Gang angle
• Hydraulic active stabilizer wheels
• Hydraulic wing control
• Hydraulic fore-aft control

TruSet features and packages
TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.

*Currently not available in feature packaging

**New feature

Active depth (Select and Premium package)

• With TruSet Active, the tillage tool automatically adjusts and keeps the desired depth even through changing field conditions, such as tire sink in soft soils or mud buildup in damp and sticky conditions.
• This is possible using an ultrasonic sensor that measures the distance from the mainframe to the soil as the implement travels through the field.

Basket pressure and raise (Select and Premium package)

• Integrated TruSet Tillage technology enables the operator to adjust their down pressure on the hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
• Easily raise your baskets with one touch to avoid certain areas of the field, whether you are wanting to check the tillage tool with the baskets up or avoid going through a wet spot in the field. Once you’re through the area and ready to lower the baskets, simply press the basket lower to resume your desired basket pressure.

Radial tires

Radial tires reduce compaction points while operating in the field and minimize downtime caused by tire failures both in the field and during transportation. Radial mainframe tires now come in base equipment and can be an option on the wings. With a wider tire plate and lower inflation pressure, radial tires have a larger contact area with the ground to help minimize compaction.

Finishing components

The 2430 offers different rear attachment options to meet the unique agronomic needs of each producer. Producers have a choice of two rear attachments on the 2430 Chisel Plow.

Knife-edge hydraulic rolling basket with internal basket scraper

The knife-edge rolling basket for the 2430 Chisel Plow is made of hardened steel and handles rock strikes and adverse conditions well. The ease of down pressure adjustability allows the tool to adapt to changing field conditions. The internal basket scraper allows for a uniform field finish in wet conditions because baskets do not need to be raised out of the ground to avoid plugging; they can remain in the ground 100 percent of the time.

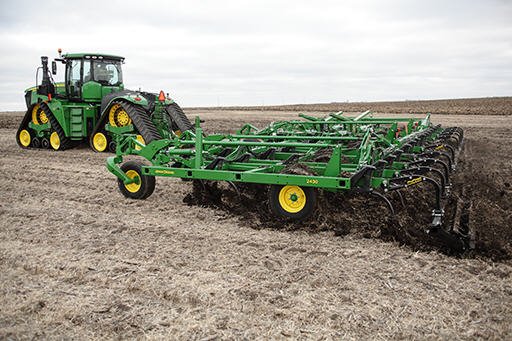

The John Deere 2430 Chisel Plow offers an active hydraulic rolling basket that gives the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for the demanding fall conditions. The system was designed to have the ability to run the rolling baskets in three different positions to finish and level the soil:

• Raised: allows the operator to raise the rolling baskets in harsh, muddy conditions
• Float: allows the operator to float the rolling baskets to lightly fluff soil
• Apply down pressure: allows the operator to adjust the basket pressure to provide consistent contact with the ground, provides a firm seedbed, and shatters root balls

240 Coil-Tine Chisel Plow Harrow

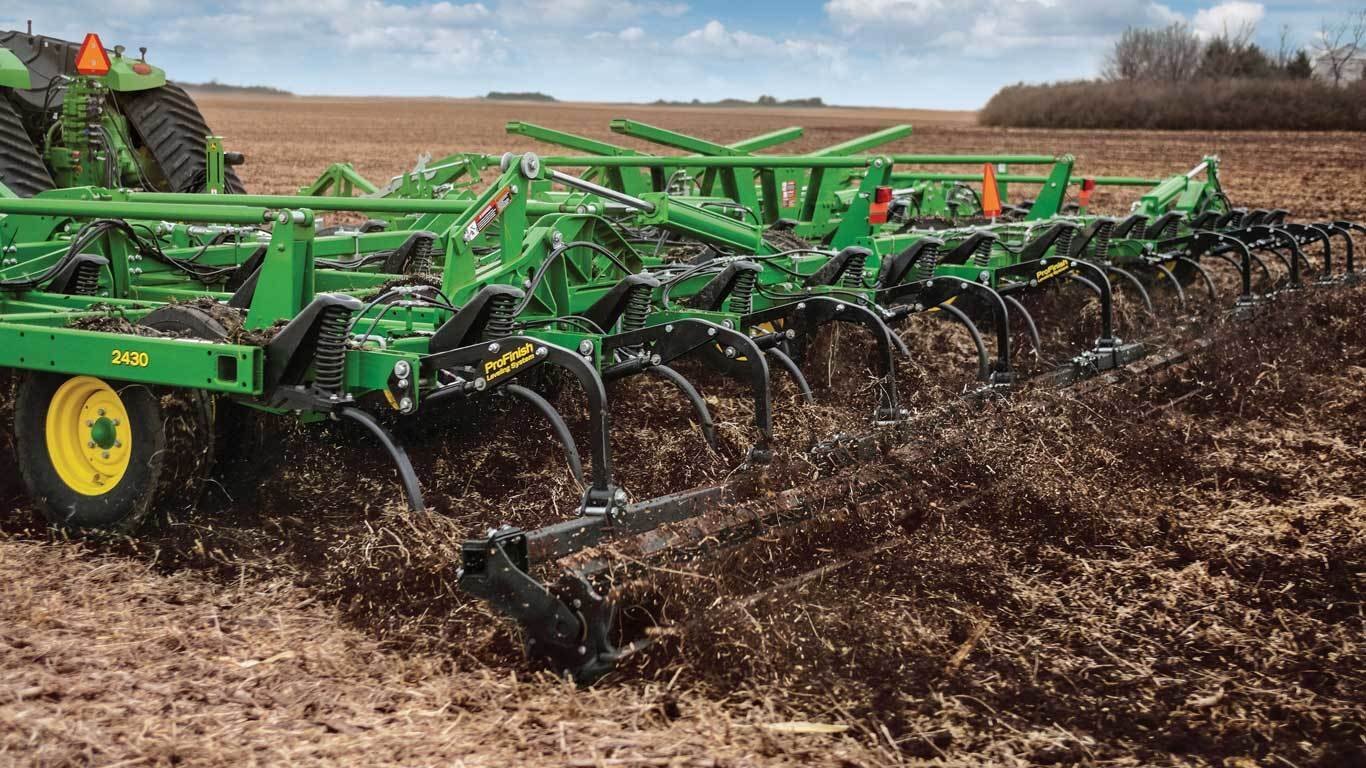

The 240 Coil-Tine Chisel Plow Harrow is designed specifically for the 2430 Chisel Plows. Harrow performance has grown increasingly important over the last few years as soil profile finish and residue-handling capability are on the top of the list for producers. Both attributes are standouts on this heavy harrow.

Variety of models and sizes available

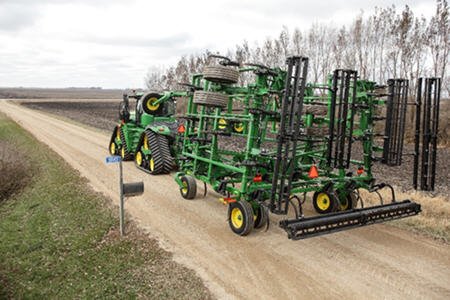

The 2430 Chisel Plow is available in rigid and rigid fold, three-section folding, and five-section folding frame models.

Excellent residue-handling capability

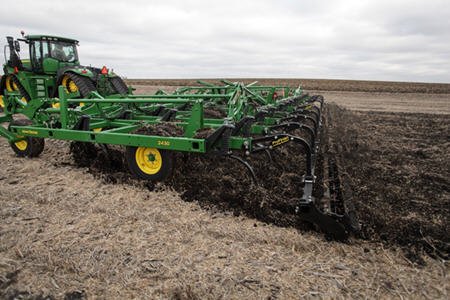

The 2430 Chisel Plow has excellent residue-handling capability in primary tillage at all residue levels.

Typical percentages of residue cover remaining from the 2430 are listed in the following table. The percentages do not consider variables such as the condition of the residue, speed, and soil type.

For machines with 305-mm (12-in.) spacing:

*Non-fragile residue includes crops like corn, sorghum, wheat than 1585.8 L [45 bu]).

**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 1585.8 L [45 bu]), sunflower, peanuts, and cotton.

For machines with 406-mm (16-in.) spacing:

*Non-fragile residue includes crops like corn, sorghum, and wheat (more than 45 bu).

**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, and cotton.

Proven frame construction

Operators are requiring faster field working speeds, larger implements, and tractors because of a dramatic increase in farm size. The market is asking for and receiving tractors with more torque, more weight, and more horsepower.

Accommodating 600 engine horsepower tractors requires more from implement frame and hitch components, including thicker frame tubes, additional diagonal bracing, and frame gussets.

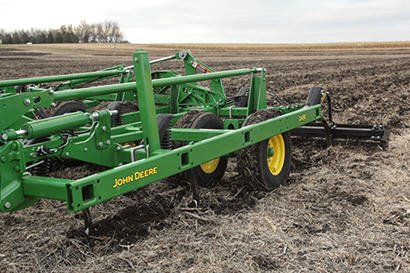

The frame is constructed of continuous 102-mm x 102-mm (4-in. x 4-in.) cross members inserted through 51-mm x 152-mm (2-in. x 6-in.), 76-mm x 152-mm (3-in. x 6-in.), and 102-mm x 152-mm (4-in. x 6-in.) fore-aft members. The mainframe boasts a structure made up of 102-mm x 152-mm (4-in. x 6-in.) fore-aft tubes.

The large frame member sizes, joint welds, and wheel module placement adds to the structural integrity, providing a stable front-to-rear and side-to-side operation.

Frame construction offers:

• Consistent operating depth

• Level operation
• Restricts frame dip

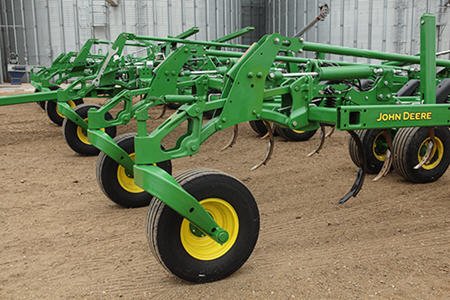

Walk-Over wheels help provide consistent working depth

Walk-Over wheels provide a consistent working depth in uneven ground for level seedbeds and complete weed control.

The staggered wheel design provides extra room for residue flow, obstacles, and transport stability.
