2025 John Deere 2730 Combination Ripper

TruSet™ features, packages, and documentation

Overview
With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.

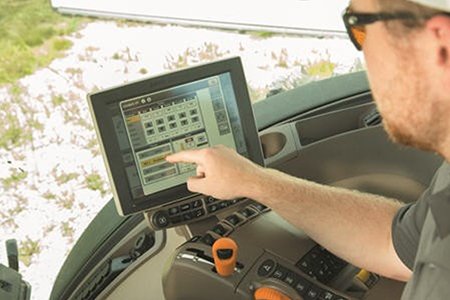

Using a GreenStar™ display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.

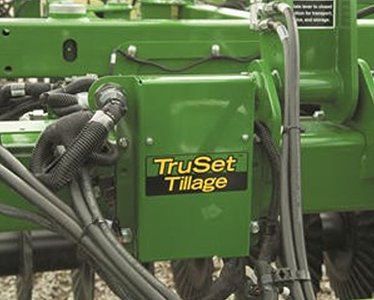

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

John Deere has expanded TruSet features to bring even more functionality into the cab:

• Active depth, and basket pressure and raise
• Gang angle
• Hydraulic active stabilizer wheels
• Hydraulic wing control
• Hydraulic fore-aft control

TruSet features and packages

TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.

*Currently not available in feature packaging

**New feature

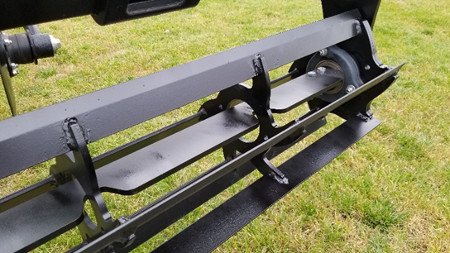

Internal basket scrapers

The internal basket scraper allows for a uniform field finish in wet conditions because the baskets do not need to be raised out of ground to avoid plugging and can stay in the ground 100 percent of the time.

This is available as an option for the knife-edge basket.

Walk-Over tandem wheels provide added support and stability

Walk-Over tandem wheels with larger tire options offer maximum support, stability, and flotation in the field. The staggered wheel design provides additional room for residue flow and obstacles all while providing a consistent working depth in uneven ground.

The Walk-Over tandem mainframe wheels come equipped with 57-mm (2.25-in.) plug-in spindles and eight-bolt hubs on the seven-standard models configured with VF320/70R15 mainframe tires, and 79-mm (3.125-in.) plug-in spindles and ten-bolt hubs on the seven-, nine-, 11-, and 13-standard models configured with either the 445/50R22.5 or 550/45-22.5 mainframe tires. The 11- and 13-standard models feature an active-hydraulic wing wheel to ensure a consistent operating depth with uniform leveling. These active-hydraulic wing wheels allow the 2730 machine to better follow the contour of the land versus rigid-mounted wing wheels on competitive models.

Variety of working and transport widths available to meet producer needs

The 2730 Combination Ripper is available in five machine configurations:

• 7S24 – seven-standard rigid frame with 610-mm (24-in.) spacing
• 9S24 – nine-standard rigid frame with 610-mm (24-in.) spacing
• 9S24 – nine-standard folding frame with 610-mm (24-in.) spacing
• 11S24 – 11-standard folding frame with 610-mm (24-in.) spacing
• 13S24 – 13-standard folding frame with 610-mm (24-in.) spacing

The 7.9-m (26-ft) 2730 delivers a 44 percent increase in productivity over the largest 5.5-m (18-ft) John Deere 2700 Mulch Ripper. The 2730 fits into a tillage system that includes the following secondary tillage tools:

• 2230 Field Cultivator
• 2330 Mulch Finisher
• 2630 Series Disks
• 2660VT Variable Tillage tool
• 2680H High PErformance Disk

The ability to set the true width of the 2730 into the track spacing setting on any TruSet™ compatible display delivers a 6 percent increase in productivity, allowing the operator to cover more acres in the same amount of time versus the competition. The true width is achieved through additional disk blades along with their tapered design to ensure consistent coverage and a level finish across the entire tillage pass.

Multifunctional implement for single-pass primary tillage

The 2730 is a combination ripper that integrates four operational areas into one system. These four areas consist of disk blades, ripper shanks, rear closing disks, and finishing attachments. The ability to customize these components quickly, conveniently, and  independently offers reduced cost of operation and maximum productivity.

The disk blades eliminate the need for multiple residue sizing passes into one single pass that reduces surface residue levels by 60 to 80 percent. The 2730’s ability to mix and bury more residue leads to faster soil warming in the spring all while reducing negative impacts of disease and insect pressure.

The ripper shanks accomplish full hardpan fracture across the entire soil profile with their 610-mm (24-in.) spacing to create a porous air and water environment for root development. Along with the ripper shank’s side-to-side spacing, it also features a 1270-mm (50-in.) fore-aft spacing that improves residue disbursement and contributes to the machines nearly plug-proof performance.

With TruSet™ or manual adjustment, the operator can set this system to leave a uniformly mounded profile covering each ripper track, or it can be adjusted to obtain a smooth, level surface ideal for minimum preparation for the next spring’s seedbed. With the walking tandem action, the closing system can follow the contour of the ground and eliminate plugs leading to a more consistent finish.

To achieve optimal field levelness and clod sizing, the operator can control the finishing attachment with in-cab, hydraulic controls. The finishing attachments can be set to constant down pressure, float, or in wet field conditions, rise completely out of the ground. This ensures the seedbed is best prepared for the least amount of pre-plant seedbed tillage passes before planting.

Typical percentage of residue cover remaining from the 2730 Combination Ripper is listed in the table below. These percentages do not consider variables such as the conditions of the residue, speed, and soil type.

NOTE: Percentages assume disk blades are operating at 152 mm (6 in.) of depth.

*Non-fragile residue includes crops like corn, sorghum, and wheat (more than 1586 L [45 bu]).

**Fragile residue includes crops: soybeans, edible beans, peas, wheat (less than 1586 L [45 bu]), sunflower, peanuts, and cotton.

Compatibility kit enables TruSet™ on competitive tractors and older John Deere tractors

Adding the TruSet compatibility kit to the TruSet Tillage system enables operators of competitive tractors and older John Deere tractors to adjust their depth and pressure settings on the go from the cab.

With the TruSet compatibility kit, TruSet can be run on the following GreenStar™ system-ready tractors:

• John Deere 20 Series Tractors and older
• Competitive tractors

Like the TruSet Tillage system, the compatibility kit is available as a field-installed option that can be ordered with the 2730 Combination Ripper or through aftermarket parts. The compatibility kit includes an implement add-on valve and installation components.

All model years of 2730 can be retrofitted with TruSet. The following chart identifies the components needed to equip TruSet on a 2730 with a GreenStar ready tractor.

Hydraulically adjustable 660-mm (26-in.) disk blades

The 2730's large 660-mm (26-in.) disk blades are hydraulically adjustable and are set in a tandem-type configuration. The disks are available in either individual disk blades or gang-type configuration. The front and rear blades are set at an 18-degree angle on either 460-mm (18-in.) spacing for individual or 280-mm (11-in.) spacing for gang to provide an aggressive disking action.

The disks can be adjusted in-cab to be raised completely out of the ground or lowered to a maximum in-ground depth of 203 mm (8 in.). The disk blades operate in constant down-pressure, and the optimal operating depth can be set from the cab with TruSet™ or manually using stop collars on the hydraulic cylinder. The ability to independently adjust the front disks based on varying conditions allows the operator to optimize desired residue sizing and mixing.

The larger disks are designed of high-quality steel and made from a manufacturing process for extended performance provide the following benefits:

• Size and bury residue
• Level the soil profile
• Mix the surface residue
• Give full-width tillage up to 200 mm (8 in.) deep
• Reduce blade wear

Fore-aft ripper shank spacing delivers improved residue flow

The 2730 delivers improved residue flow by increasing the overall frame length and underframe clearance along with the fore-aft spacing of the ripper shanks.

The 1270-mm (50-in.) fore-aft spacing maximizes residue disbursement, and 953 mm (37.5 in.) of underframe clearance contributes to the machine's nearly plug-proof performance. The 2730 features 610-mm (24-in.) side-to-side spacing that accomplishes full hardpan fracture across the entire soil profile to create a porous air and water environment for root development and plant nutrient uptake.

For added durability and increased soil penetration, the 2730 boasts the largest and heaviest frame in the industry. The overall weight of each model ensures consistent machine performance. In high residue areas, 953 mm (37.5 in.) of underframe clearance results in reduced plugging and increased residue flow to maintain productivity and uptime.

*Weights listed are for models equipped with no leveling attachment

Achieve desired field finish with hydraulically adjustable finishing attachments

The 2730 comes equipped with hydraulically adjustable finishing attachments to achieve the desired field finish. The hydraulic rolling baskets can be set to three hydraulically controlled positions from the comfort of the cab. The heavy-duty coil tine harrow is rigid mounted to the frame and depth adjustments are made according to the rear closing disk system.

The finishing attachments come in a knife-edge or coil tine configuration and prepares field for a reduced amount of secondary tillage passes before planting. Below are the benefits of each attachment:

• Knife edge – better option in heavier, wet soils. Recommended basket for rocky soil types.
• Heavy-duty coil tine harrow – preferred finishing attachment in heavy, poorly drained soils.

The rolling baskets can be hydraulically set to three different operating positions based on field conditions:

1. Down pressure – a gauge on the front of the 2730 allows operators to set basket down pressure to ensure constant ground contact. Down pressure also allows for better sizing of slabs, clods, and root balls and will leave a level soil profile.
2. Float – the baskets can be put in the float position using the selective control valve (SCV) on the tractor. This allows the weight of the basket to roll over the ground.
3. Raised – the baskets can be lifted off the ground when encountering a wet area of the field to help eliminate any chance of plugging.

The active hydraulic down-pressure system allows the operator to increase the down pressure on finishing attachments up to 6205 kPa (900 psi). Adjustments are made with a dial located next to the gauge. Down pressure should be set using the gauge and operated from the cab.
