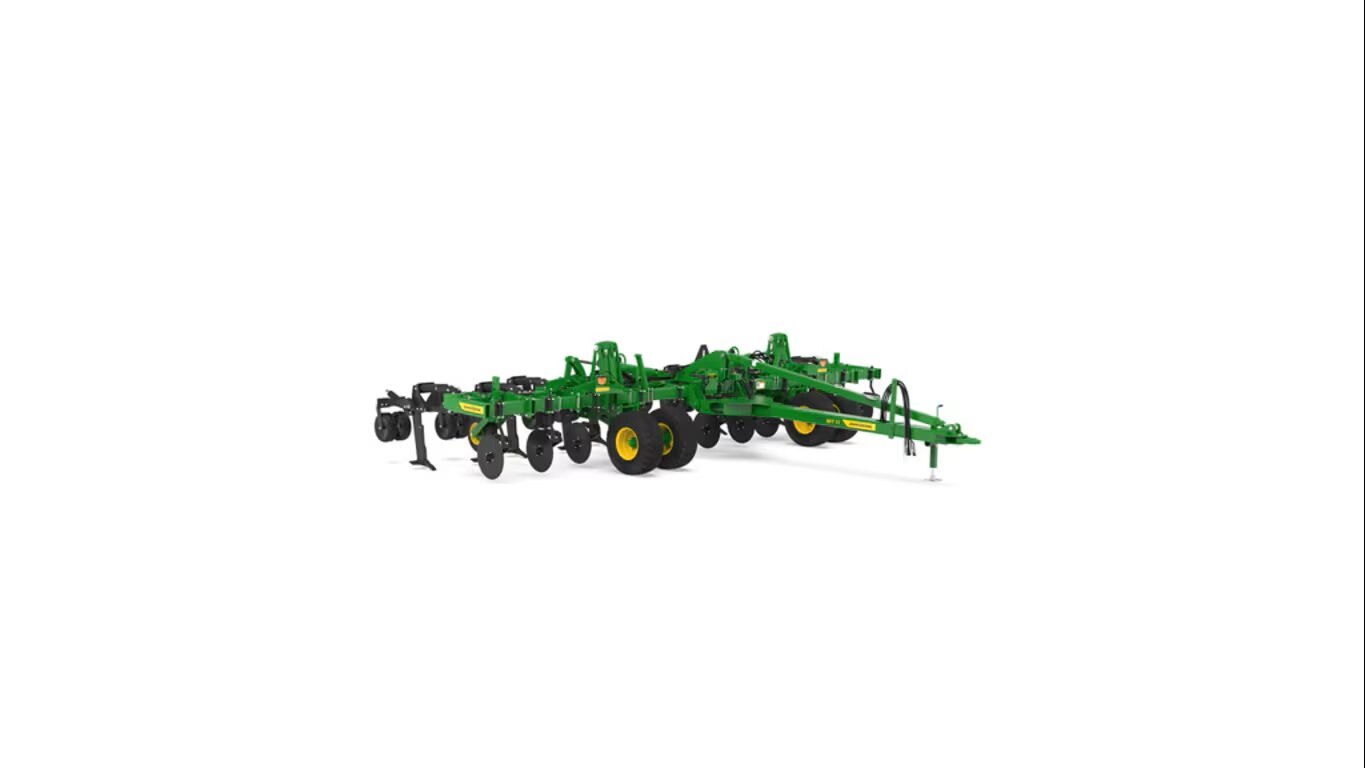

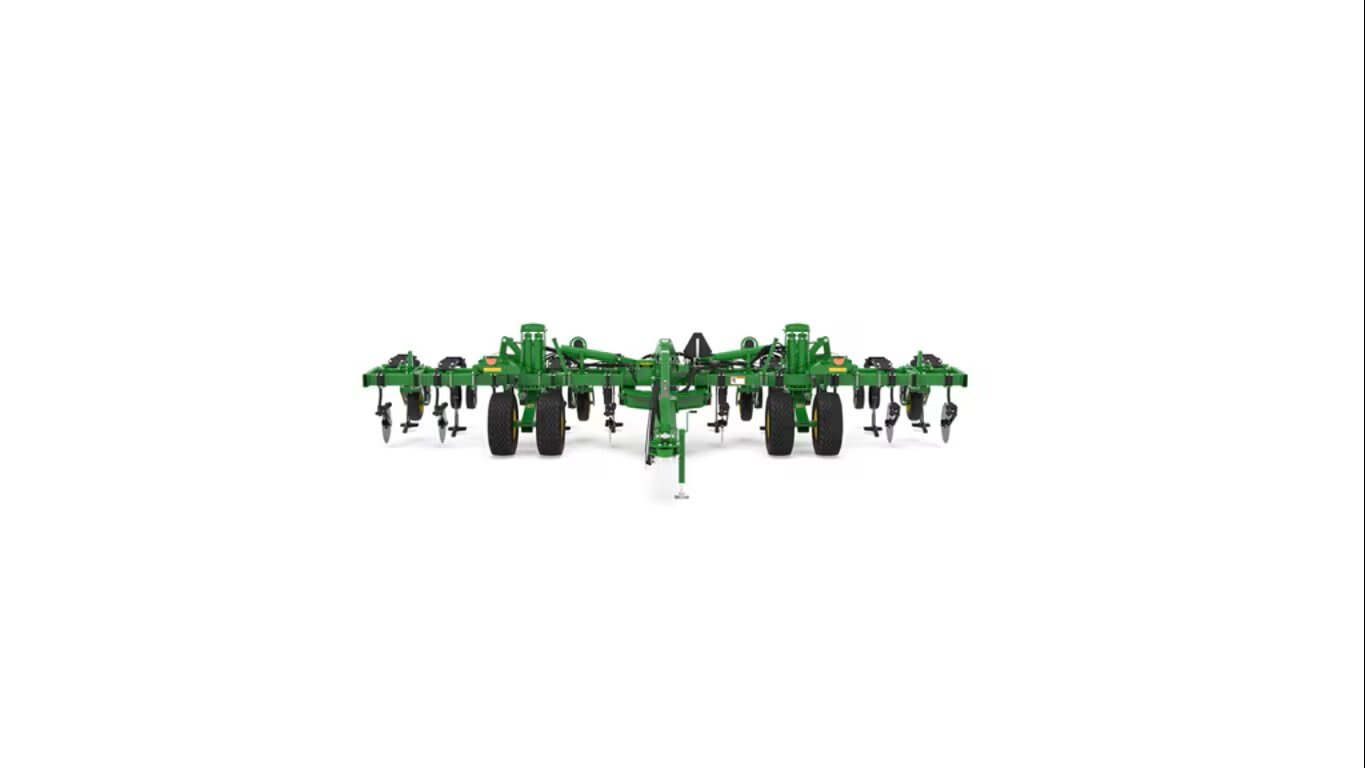

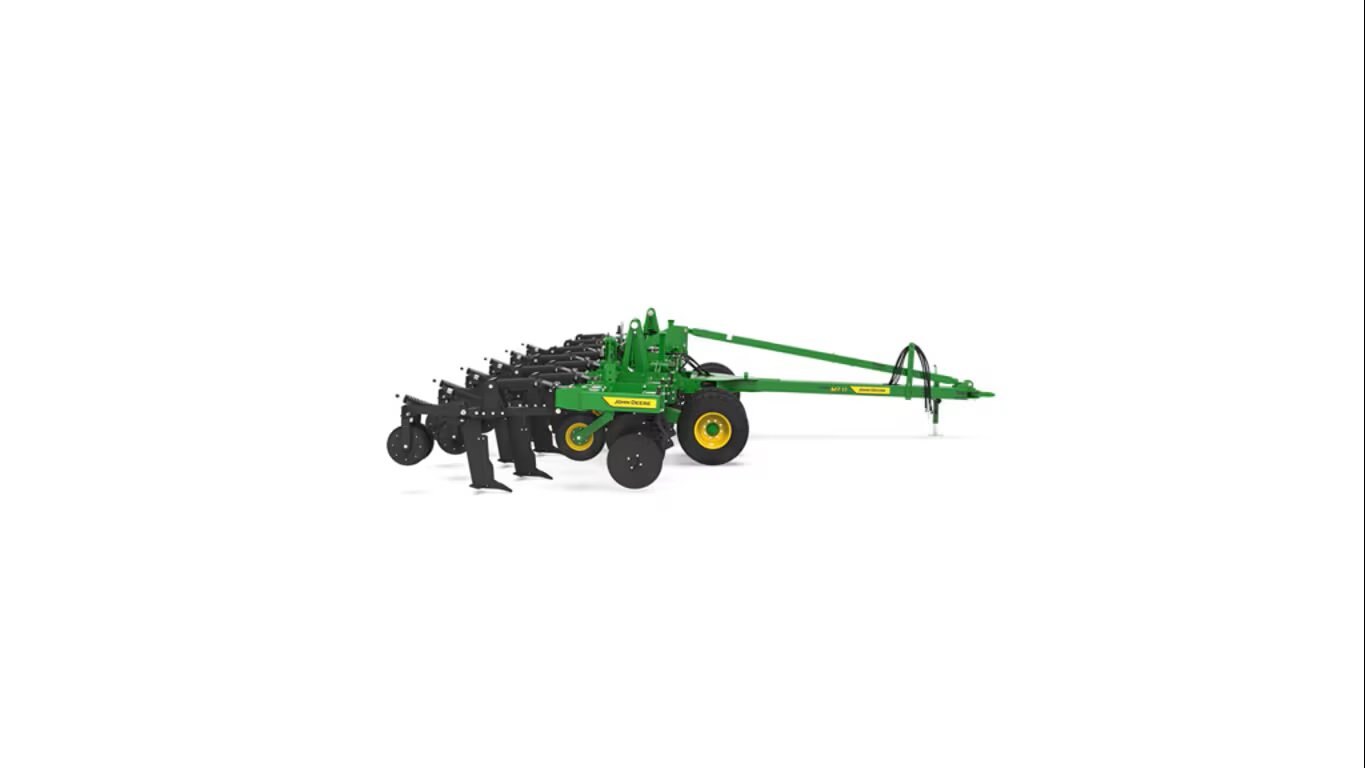

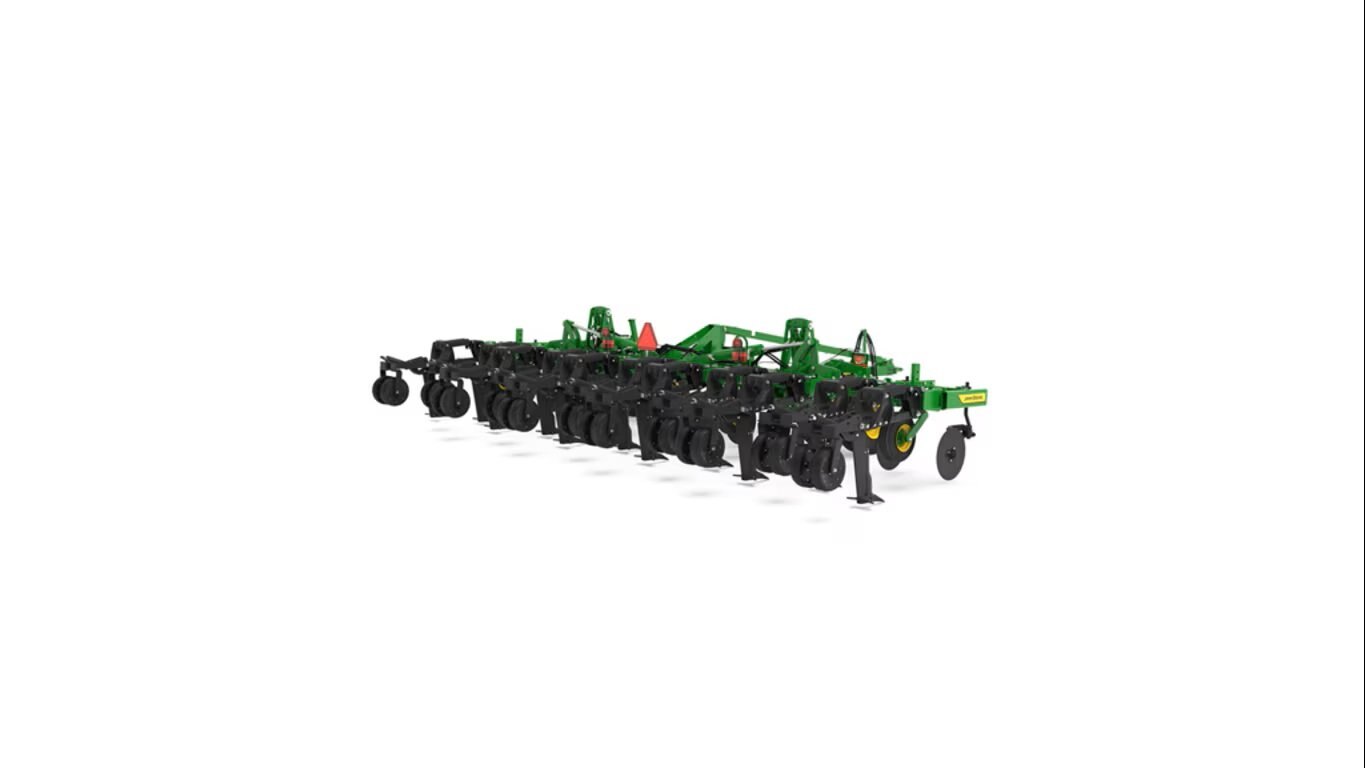

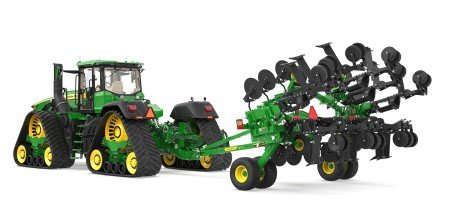

MT Series Minimum Till Rippers are built to run at 4 – 7 miles per hour behind today’s high horsepower tractors.
Rip 25 more acres per day with the MT11 compared to the previous 9 standard model. MT Series Rippers break-up deep compaction at depths up to 16 in. while minimizing topsoil disturbance. |
|

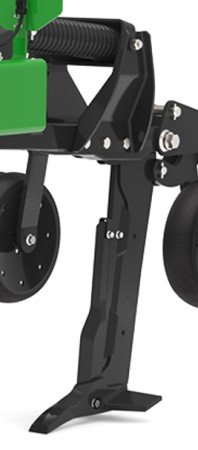

Extended wear standards deliver double the life expectancy compared to previous 2100 ripper models. The MT series delivers a highly productive and easy to set minimal maintenance solution to breaking up soil compaction. Spend less time changing components and more time working your ground. |
|

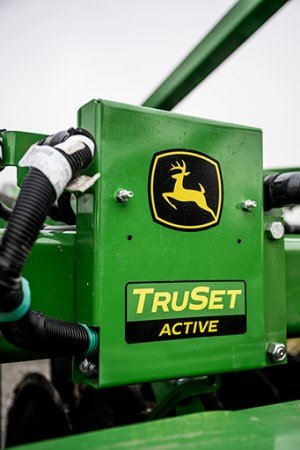

TruSet Active provides better documentation of agronomic data and the ability to run prescription files. With TruSet Active, operators can adjust depth from inside the cab. Single point (manual) depth control is also included as standard equipment on drawn machines.
TruSet Active maintains the desired depth of the MT Series (with Drawn hitches). When field conditions are challenging, TruSet Active uses ultrasonic technology to keep the ripper at desired depth regardless of mud on the tires, or when tires sink into soft soils.
See TruSet for additional information: TruSet™ features, packages, and documentation
Customers of competitive tractors and older John Deere tractors will need a TruSet™ compatibility kit. Please see Compatibility for additional details for specific tractor models.
|
| Working width | 8.3 m 27.5 ft |
|---|---|
| Transport width | 4.8 m 15.5 ft |
| Operating depth | Maximum 40.6 cm 16 in. |
| Miles per hour | 6.4-11.2 km/h 4-7 mph |
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
| Spacing between standards | 76.2 cm 30 in. |
| Type | In-line ripper |
|---|
| Maximum | 40.6 cm 16 in. |
|---|
| Size | 152x152x9.5 mm 6x6x0.35 in. |
|---|---|
| Maximum underframe clearance | 89 cm 35 in. |
| Horsepower per standard | 29.8-44.7 kW 40-60 hp |
|---|
| Option 2 | TruSet™ Active |
|---|
| Options | Drawn |
|---|---|
| Pull-type description | Category 5 Hitch |
| Options | Standard: 19 mm (0.75 in.) min-till point: 178 mm (7 in.) low-disturbance: 254 mm (10 in.) ultra-low-disturbance: 63 mm (2.5 in.) Standard: 31.75 mm (1.25 in.) Regular: 57 mm (2.25 in.) Capped: 57 mm (2.25 in.) Double-capped: 57 mm (2.25 in.) LaserRip points: 70 mm (2.75 in.), 127 mm (5 in.), and 178 mm (7 in.) |
|---|
| Type | Spring cushion coulters |
|---|---|
| Pounds of force | Normal working load: 272.2 kg 600 lb Deflection of: 10.2 cm 4 in. Maximum trip load: 362.9 kg 800 lb Deflection of: 20.3 cm 8 in. |
| Blades | Straight or rippled: 559x4.5 mm 22x0.1777 in. |
| Type | Two Stabilizer wheels |
|---|---|
| Wheels | 52.1x20.3 cm 20.5x8 in. |
| Tires | 10 PR |
| Description | VF320/70R15 Radial tire (with drawn hitch) |
|---|
| Name | Link |
| View Product Brochure | Download |
